Description
BRING SOME PROFESSIONAL STANDARDS TO YOUR LAWN.

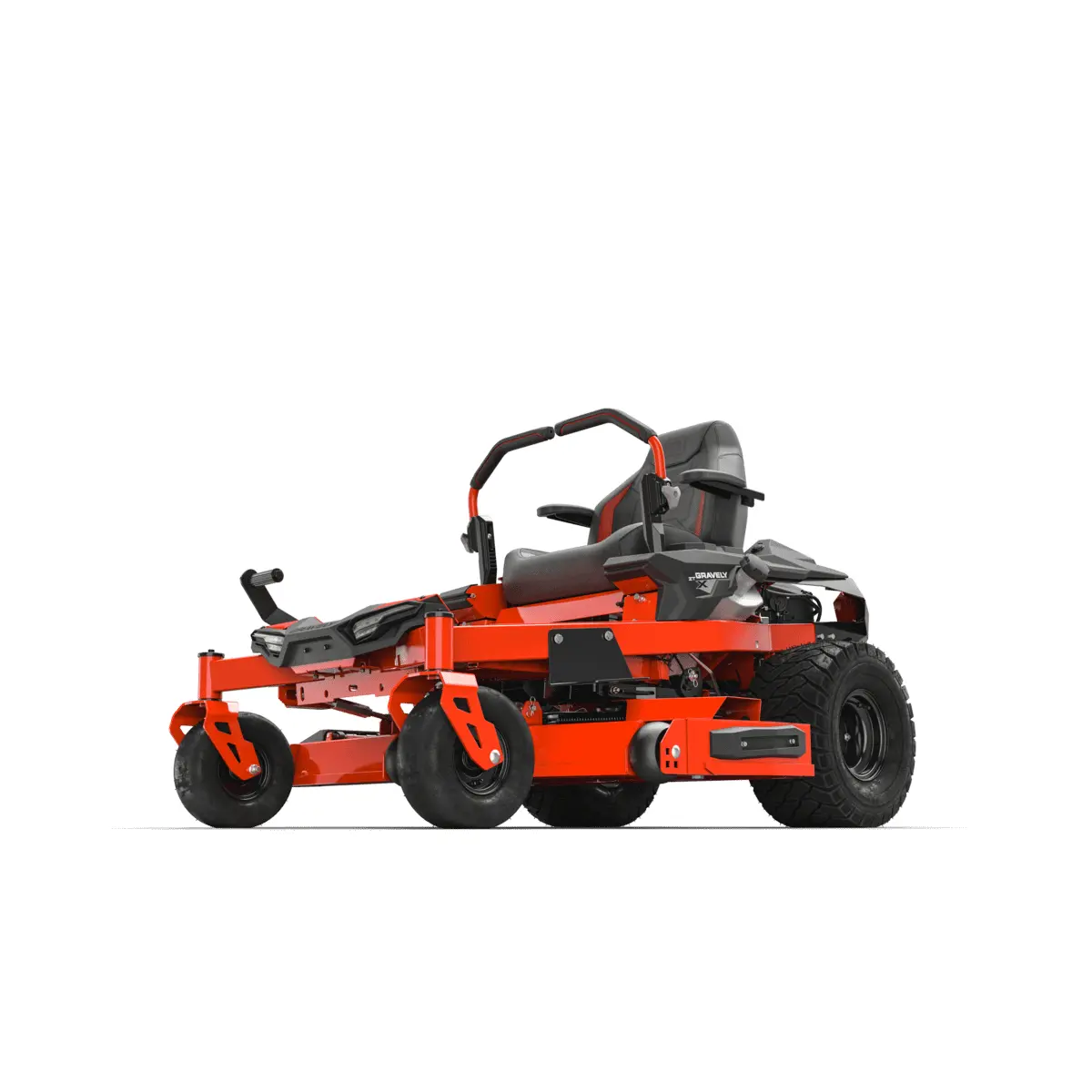

This is the residential lawnmower that’s often mistaken for a commercial mowing machine. It’s no surprise with its heavy-duty construction, professional features, and legendary Gravely performance. When you have a ZT X on your lawn, your neighborhood will know you’re upping your lawn game to the next level.
X-FACTOR® 11-GAUGE FABRICATED DECK
Inspired by our commercial machines, this all new 4 1/2 inch-deep steel deck
optimizes airflow, and the reinforced sloped nose allows more room
for grass to stand up ahead of the cutting chamber for our best cut
ever on a residential machine. Caged anti-scalp wheels make your
lawn less susceptible to damage from minor bumps and scrapes.
ONE-PIECE, FULLY-WELDED TUBULAR CHASSIS
This chassis displays strength and durability with its closed tube frame rails and
fully welded construction techniques influenced by our commercial
applications.
TALLER AND WIDER SEAT WITH MOLDED ARMRESTS
Ready for the long mow! This seat is 22” tall to provide more back support and
is mounted on a taller seat base to make it easier to stand up and sit
down. Molded armrests give your arms rest too.
HYDRO-GEAR® SERVICEABLE EZT® TRANSAXLES
Serviceable transaxles have optimized cooling to ensure smooth running for years
to come. Service ports allow oil changes to help extend the life of your
machine.
| FUEL SYSTEM | Gas | ||
|---|---|---|---|
| FUEL CAPACITY | 3.5 gal / 13.2 ltr | ||
| DRIVE SYSTEM | Hydro-Gear® Serviceable EZT® Transaxles | ||
| TRANSMISSION TYPE | Hydrostatic | ||
| BRAKE TYPE | Integrated Parking Brake | ||
| DRIVER POSITION | Sit | ||
| GROUND SPEED FORWARD | 7 mph / 11.3 kph | ||
| GROUND SPEED REVERSE | 3 mph / 4.8 kph | ||
| WHEELS FRONT | 11.0 x 6.0 in – 5.0 in (27.9 x 15.2 cm – 12.7 cm) | ||
| WHEELS REAR | 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) |
| DECK SIZE | 52 in / 132.1 cm | ||
|---|---|---|---|
| COVERAGE HOUR | 3.6 acres / 1.5 hectares | ||
| SPINDLE TYPE | Mechanical | ||
| DECK MATERIAL | 11 ga | ||
| DECK CONSTRUCTION | Fabricated X-Factor® | ||
| DISCHARGE CONFIGURATION | Side | ||
| CUTTING HEIGHT MIN | 1.5 in / 3.8 cm | ||
| CUTTING HEIGHT MAX | 4.5 in / 11.4 cm | ||
| CUTTING WIDTH | 52 in / 132.1 cm |
| WEIGHT (ASSEMBLED) | 695 lb / 315.2 kg | ||
|---|---|---|---|
| LENGTH | 74.5 in / 189.2 cm | ||
| WIDTH (CHUTE UP) | 55.6 in / 141.2 cm | ||
| WIDTH (CHUTE DOWN) | 66.7 in / 169.4 cm |
